$38125-249 Set/Sets
$35250-499 Set/Sets
$32≥500Set/Sets
| betaling Type: | L/C,Western Union,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| vervoer: | Land,Ocean,Air,Express |
| Haven: | Tianjin/Xingang |
Model: xinhai-027
merk: Xinhai
Warranty: 5 Years
After-sale Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Cross Categories Consolidation

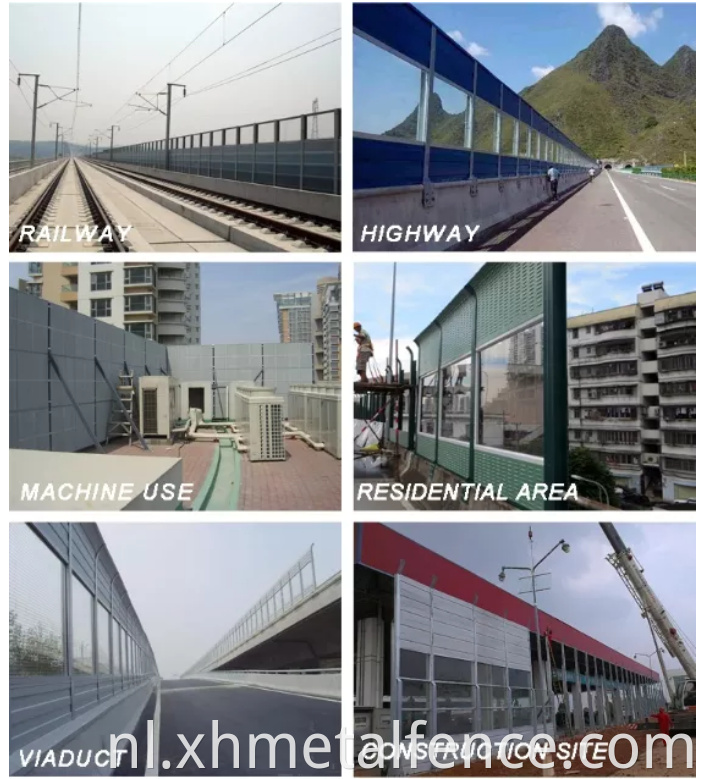

Toepassing: High-speed Railway, Highway noise barrier
Design Style: Modern
Place Of Origin: Hebei, China
Brand Name: Xinhai
Model Number: XHWU-155
Type: Noise Barrier, shutter sheet; punching sheet
Material: galvanized sheet or aluminium sheet
Color: grey, green, bule,as your request.
Finish: Powder Coated
Panel Size: 2500*500*100mm, as your request
Post Type: H steel
Soundproof Index: 10-30db
Design: flat or Bent Top
Naam van product: Sound barrier Noise Barrier
| Verkoopeenheden | : | Set/Sets |
| Pakkettype | : | 1.Fence Panel: Plastic Film dan met hout/metalen pallets. 2.Fence Post: verpakt met een plastic zak (de dop is goed bedekt op de paal) en vervolgens met metalen pallet. 3. Accessory: kleine plastic zak dan met een doos. |
| Afbeeldingsvoorbeeld | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

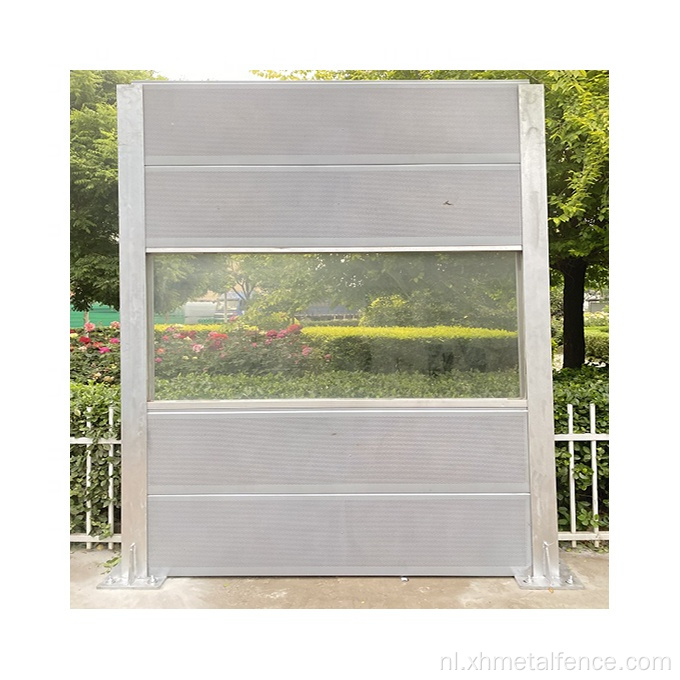

product Introductie
Geluidsbarriere
|
Height
|
2-4m
|
|
Length
|
0.5-2m
|
|
Panel thickness
|
40-100mm
|
|
Panel width
|
500mm,600mm,1000mm
|
|
Panel style
|
Steel panel,PC board
|
|
Hole style
|
Blind hole,small hole
|
|
Material
|
Steel or aluminum barrier
|
|
Surface treatment
|
Galvanized,powder coated
|
|
Post
|
H steel post
|
|
Accessories
|
On request
|
|
Wind pressure value(KN/M2)
|
Height
|
Vertical force N(KN)
|
Horizontal force Sva(KN)
|
Bending moment M
|
|
W.≤0.45
|
2
|
1.7
|
9.1
|
9.4
|
|
2.5
|
2.64
|
11.4
|
14.7
|
|
|
3
|
3.3
|
13.7
|
21.1
|
|
|
3.5
|
4.28
|
16
|
28.6
|
|
|
4
|
4.92
|
18.3
|
37.3
|
|
|
0.45＜w.≤0.75
|
2
|
1.85
|
15.2
|
15.8
|
|
2.5
|
2.9
|
19
|
24.5
|
|
|
3
|
3.62
|
22.8
|
35.1
|
|
|
3.5
|
4.32
|
26.7
|
47.7
|
|
|
4
|
5.4
|
30.5
|
62.1
|
